FA120 1.2m manual flyaway antenna

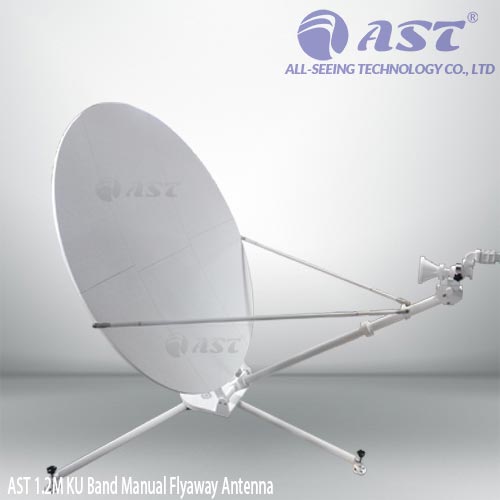

1.2 Meter Manual Flyaway Antenna

Model: FA120

Category:

AST 1.2m Ku/Ka/X band flyaway antenna system are designed to provide high speed stow and deploy through its simple and robust structure and light weight material.

The reflector is composed of six panels, use fast-lock speed connection thus avoiding the need of installation tools. Az/El adjustment can be locked, El adjustment is by fast-tune and fine-tuning combined in one device to facilitate the operation. The support can be deployed flexibly, the whole structure of the antenna is designed to be easy to disassemble and assemble with features including all antenna parts/components packed in 1 box, small size, light weight and high stability.

The antenna has been designed to be airline checkable and can be field .

RF PERFORMANCE
Antenna Aperture1.2m
ModelFA120-KUFA120-KAFA120-X


Operating  Frequency

GHz



KuKaX
RxTxRxTxRxTx
10.95-12.7513.75-14.517.7-21.227.5-317.25-7.757.9-8.4
Gain(dB)4142.145.949.137.538.2
Beamwidth(-3dB)1.5°1.2°0.84°0.55°2.20°2.03°
Feed interfaceWR-75WR-42WR-28WR-112
VSWR1.25:11.3:11.25:1
PolarizationLinearCircularCircular
Feed insertion loss0.2dB0.2dB0.2dB
Cross-polarization on axis35dB

30dB

35dB

26B

21.3dB

21.3dB

Within 1dB Beamwidth
Port to port isolation

Tx to Rx dB

 ≥85 ≥85≥85
SidelobesIESS 601 STD G
Materials of reflectorCarbon fiber
MECHANICAL
Antenna TypeOffset antenna
Main reflector materialCarbon Fiber
Antenna Weight

(Not include BUC

24 Kgs
Packing sizeThe antenna can be packed in one case or multi-cases in according to request of user.
Antenna pointing range

Elevation

Azimuth



0°–90° (Continuous)

360° (Continuous)

ENVIRONMENTAL
Surface accuracy (RMS)≤ 0.5mm
Solar radiation1000kcal/hm2
Temperature operational– 15℃-+60℃
Operation wind Speed40km/h no ballasts/anchors, 72km/h with ballasts
Survival wind speed145km/h with ballast /anchors
